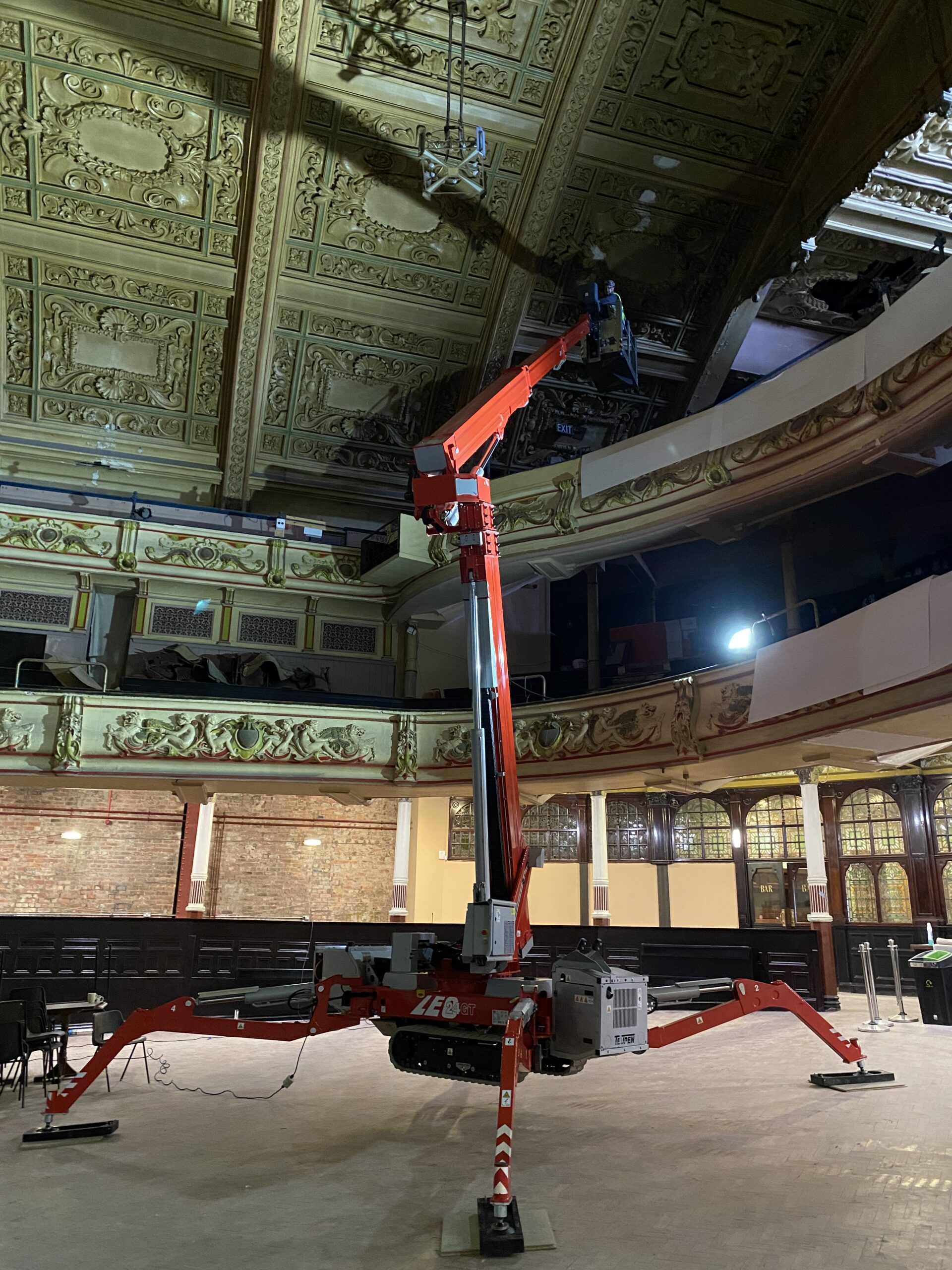

TEUPEN Leo 24GT
The rental companies most utilised spider lift!
The Leo 24GT is deemed the Swiss army knife of any reputable rental fleet. Boasting 12m of unrestricted outreach with 250kg SWL, and an up and over height to match at 12m. This is a serious piece of equipment with extreme capabilities
Perfect For:
- Tree care
- Indoor and outdoor property maintenance

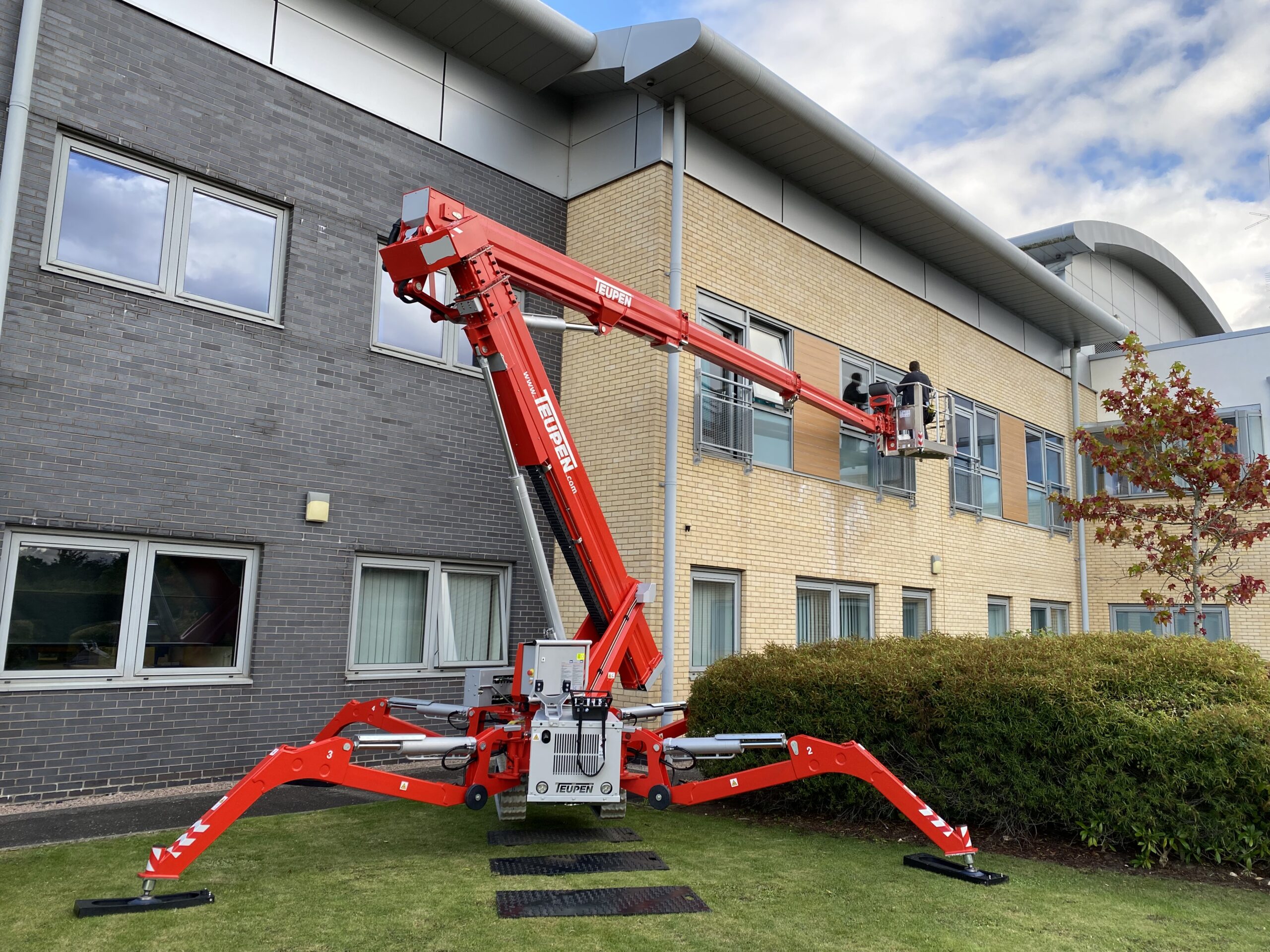

- Telecommunications mast and structures
Max Height:
24m
Travel Width:
0.98m
Max Outreach:
12m
Weight:
3300kg
Safe Working Load:
250kg
Description
Specification
Video
Description
True Performance

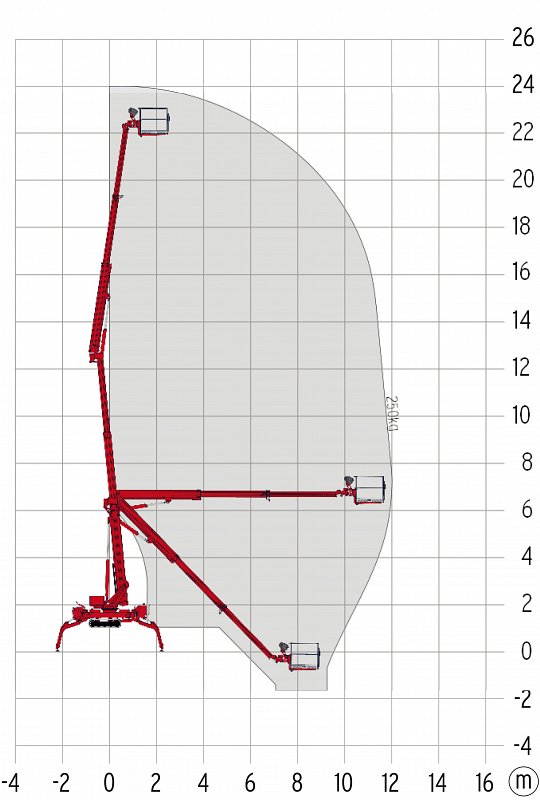

Only 98 cm passing width make access through single standard doors quick and easy. With 250 kg platform capacity in the entire working area the LEO24GT has an unrestricted outreach of 12,00 m. That is always enough capacity to take two persons including tools or material: No compromises and unrivalled in this height segment.
Innovative boom technology
Within the new, high-strength steel boom telescopes all cables, hoses and hydraulic cylinders are safely routed through the booms and therefore protected against damage, dirt and all weather conditions – clean and above all safe quality.
Intuitive control system
Blue for boom functions, yellow for stabilisers, red for the track drive: All TEUPEN controls are arranged following this easy and simple design. Furthermore, a display offers a complete overview of all important information. In standard version the LEO24GT is equipped with a remote control.

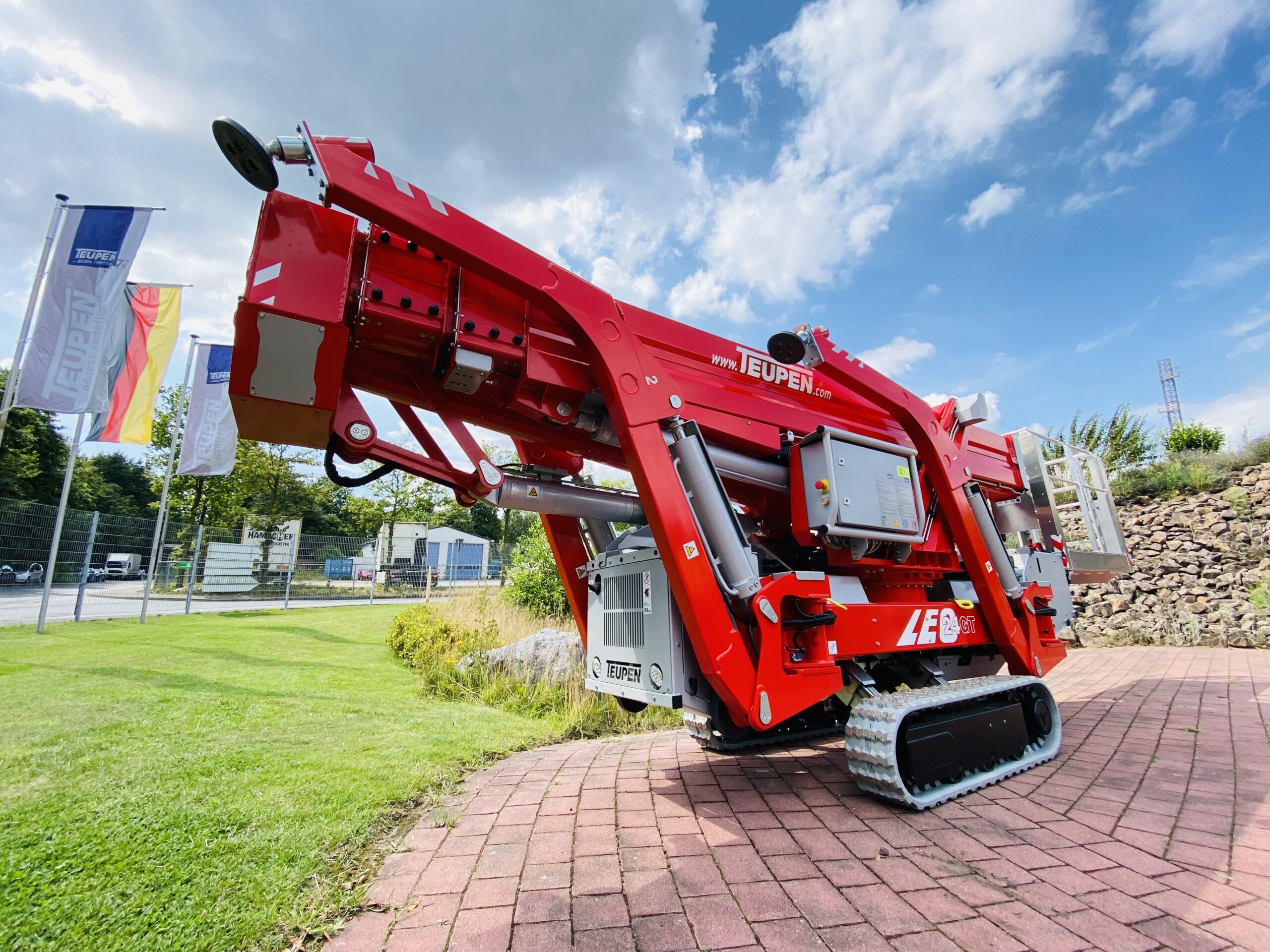

The TEUPEN track drive
The track drive with non-marking rubber tracks provides easy, precise maneuvering and protects sensitive flooring. As a standard feature the LEO24GT is equipped with the mechanically height- and width adjustable track drive: The narrow setting decreases the width of the machine, in wide it increases ground clearance and stability. Also levelled driving alongside slopes is possible. On request the hydraulic track drive is smoothly adjustable at a touch of a button.
High-performance stabiliser system
Safe positioning even with little space: The multi-position stabiliser system permits to automatically set up the machine in confined areas and on slopes. It offers three different setup positions: Both sides wide, one side wide and one side narrow or both sides narrow. In terrain or over obstacles the stabilisers overcome a height difference of 1,20 m.
The platform – maximum of flexibility
The platform is detachable to decrease the transport length, 180° rotatable and corner-mounted to turn into confined corners. Additionally, it is mounted from single high-strength aluminium components rather than being welded into one piece – that makes replacing damaged parts more economical.
Dual power source
The right power source for every job: in standard version the LEO24GT is equipped with a 230 V electric motor for a silent and zero-emission work inside of buildings. For outdoor use it has a powerful and robust petrol engine. Optionally, the petrol engine can be replaced by a Kubota Diesel engine or a battery drive.
Specification
- 24m
- 12m
- 250kg
- 6.4m/5.05m
- 0.98m
- 1.99m
- 3300kg
- Diesel
